The ART M-Four tube condenser microphone is perfect for recording both critical vocals and essential instruments. The dual diaphragm multi-pattern tube design delivers nine different polar pattern settings allowing unmatched versatility, making the M-Four ideal for virtually every recording application.
The ART M-Two is one of the most versatile compact side-address wide diaphragm condenser microphones available. A cardioid polar pattern with two position pad and two position low frequency roll-off switches make it the ideal studio condenser microphone for solo vocal or instrument recordings where subtlety and clarity is paramount.
The S8-3WAY eight channel three way microphone splitter is ideal for live sound, recording and broadcast applications where microphone and XLR balanced line level input signals have to go to multiple mix locations.
The ART HeadAmp6PRO is a six-channel stereo headphone amplifier that includes a six-channel auxiliary input section that can be used to provide the popular “More-Me” function on each headphone mix. Each output channel also features a dual function BALANCE control which will pan between LEFT & RIGHT sides of the main signal bus, or vary the MIX between the main signal bus and the AUXILIARY input for that respective channel.
The new ART ProMPA II is the next generation in affordable high performance microphone preamp technology. Each microphone input circuit, with selectable 48v phantom power, features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. TheProMPA II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.
The Tube MP Studio V3 delivers warmth and fatness to any audio source while maintaining an exceptionally low-noise signal path. While its primary function is as a microphone preamp with +48V phantom power, variable gain and phase reverse switching, the Tube MP is also an exceptionally versatile tube driven direct box for any instrument source.
The Tube MP Project Series is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to a mixer or other audio input. This hybrid design is the latest in a long line of ART tube preamps. We took our legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, and cost effective product. From the new all-aluminum stackable chassis to the precision LED level metering circuitry, we have improved virtually every aspect of our already successful Tube MP series. With up to 70dB of clean musical gain and high output signal drive capability the cold digital world will melt with your mixes! Charge up your creativity with the Tube MP Project Series!
The Tube MP is the world’s most popular external tube microphone preamp. Whether you’re working with a digital, computer or analog recording system, the Tube MP’s TEC award nominated design will allow you to obtain professional recording studio results at a fraction of the cost of comparable equipment. The hybrid design of the Tube MP allows it to add warmth and fatness to a signal while maintaining exceptionally low-noise and high quality. While its primary application is to be used with a microphone, the Tube MP is an exceptional direct box - impedance matching, amplifying and improving the sound of any instrument plugged into it.
The USB Dual Pre is a full-featured high quality dual portable preamplifier and computer interface packed into a compact rugged case.
It is designed to work over a wide variety of applications from remote field recording to desktop/studio tracking. Each of the two low noise input channels has up to 48 dB of clean gain with signal present and clip LED indicators. Inputs can be either XLR balanced or 1/4-inch TRS. Each of the 1/4-inch TRS outputs is buffered low impedance balanced.
The ART TubeOpto 8™ is the ideal Eight Channel input / output expander for any ADAT lite-pipe equipped audio interface, direct-to-disc recorder or DAW. Eight high quality second generation discrete Class–A vacuum tube microphone preamps are packaged in a single rack space unit with eight channel 24-bit digital I/O.
The DJ PRE II (formerly named the “Phono MicroPRE”) acts as an interface between your turntable and your audio recording / playback system. The analog input capacitance can be switched between 100pF and 200pF to optimize your phono cartridge response. A switchable low cut filter removes turntable rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamp’s gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The line output jacks are low impedance and can be used with any sound card.
The Zdirect is a high quality totally passive interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input thru a high performance audio isolation transformer. The high impedance single-ended 1/4” input is converted by the transformer into an isolated balanced low impedance signal source. The Zdirects audio transformer has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Zdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
The Xdirect is a high quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4” and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source. The Xdirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
The HeadAmp4 offers 1/8th-inch as well as 1/4-inch inputs and outputs as well as lower noise, lower distortion and more output in a new custom extruded stackable metal case.
The ProVLA II is a tube driven Vactrol®-based Compressor / Leveling amplifier designed to excel in any professional audio environment. Superior performance and an incredible tone makes the ProVLA II and indispensable tool for tracking, mixing, mastering, dynamic control of live sound sources or for use in broadcast audio.
Overview

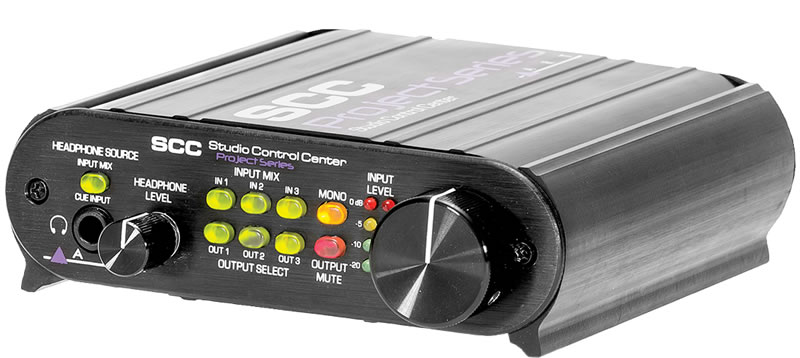

The ART SCC is the ideal compact solution allowing you to take complete control of your studio space. Three selectable stereo sources can be quickly and easily routed to any or all of three sets of stereo balanced outputs from the front panel. Sources can be individually selected or blended from the front panel. Separate trim pots ensure proper levels between sources can be preset. A large single volume knob controls the overall output level of the system.
A separate cue source input with its own outputs and level control allows a separate headphone mix to run in parallel to the main mix. The headphone output can easily switch between the cue source and the main input source with the touch of a single button on the front panel.
Additional controls on the SCC include a master mute switch, and a mono switch allowing you to sum the stereo inputs to mono to check phase in any mix.
In a typical studio setup, one set of inputs on the SCC would connect to the main output of your DAW workstation or computer audio card. Secondary outputs or headphone output would be connected to the SCC's Cue Mix input allowing for a second, completely separate headphone mix. Other sources (keyboard, iPod, analog sub mixer etc) can connect to the additional stereo inputs.
